Juniper® JNCIA Exam Cram Notes : Ipv4 And Ipv6 Fundamentals

1. Networking Fundamentals

1.6 IPv4 and IPv6 Fundamentals

IP addresses are assigned by a central numbering authority called the Internet Assigned Numbers Authority (IANA). IANA ensures that addresses are globally unique where needed and has a large address space reserved for use by devices not visible outside their own networks.

IPv4 addressing: IPv4 addresses are 32-bit numbers that are typically displayed in dotted decimal notation. A 32-bit address contains two primary parts: the network prefix and the host number.

All hosts within a single network share the same network address. Each host also has an address that uniquely identifies it. Depending on the scope of the network and the type of device, the address is either globally or locally unique. Devices that are visible to users outside the network (webservers, for example) must have a globally unique IP address. Devices that are visible only within the network must have locally unique IP addresses.

IPv4 classful addressing: To provide flexibility in the number of addresses distributed to networks of different sizes, 4-octet (32-bit) IP addresses were originally divided into three different categories or classes: class A, class B, and class C. Each address class specifies a different number of bits for its network prefix and host number:

  • Class A addresses use only the first byte (octet) to specify the network prefix, leaving 3 bytes to define individual host numbers.
  • Class B addresses use the first 2 bytes to specify the network prefix, leaving 2 bytes to define host addresses.
  • Class C addresses use the first 3 bytes to specify the network prefix, leaving only the last byte to identify hosts.

In binary format, with an x representing each bit in the host number, the three address classes can be represented as follows:

00000000 xxxxxxxx xxxxxxxx xxxxxxxx (Class A)
00000000 00000000 xxxxxxxx xxxxxxxx (Class B)
00000000 00000000 00000000 xxxxxxxx (Class C)

Subnetting: Subnetting an IP Network is done primarily for better utilization of available IP address space, and routing purpose. Other reasons include better organization, use of different physical media (such as Ethernet, WAN, etc.), and securing network resources.

A subnet mask enables you to identify the network and node parts of the address. The network bits are represented by the 1s in the mask, and the node bits are represented by the 0s. A logical AND operation between the IP address and the subnet mask provides the Network Address.

For example, using our test IP address and the default Class C subnet mask, we get: 1100 0000.1011 1101.1101 0010.0100 1110 Class C IP Address 1111 1111.1111 1111.1111 1111.0000 0000 Default Class C subnet mask 1100 0000 1011 1101 1101 0010 0000 0000

As can be seen above, by using and AND operator, we can compute the network portion of an IP address. The network portion for the IP address given in the above example is, and the host portion of the IP address is 078.

Below fig. Shows the format of IP address classes

Subnetting classes
  • Class A -The leading bit is set to 0, a 7-bit number, and a 24-bit local host address. Up to 125 class A networks can be defined, with up to 16,777,214 hosts per network.
  • Class B - The two highest-order bits are set to 1 and 0, a 14-bit network number, and a 16-bit local host address. Up to 16,382 class B networks can be defined, with up to 65,534 hosts per network.
  • Class C - The three leading bits are set to 1, 1, and 0, a 21-bit network number, and an 8-bit local host address. Up to 2,097,152 class C networks can be defined, with up to 254 hosts per network.
  • Class D -The four highest-order bits are set to 1, 1, 1, and 0. Class D is used as a multicast address.

Subnetwork Mask Format: IPv4 subnetwork masks specified in one of the two ways: dotted decimal or prefix length notation.

Dotted decimal notation expresses IP addresses and masks in dotted quads - four octets separated by dots (A.B.C.D). In this format, each octet in the address or mask is represented as a decimal number and the dots are used as octet separators.

For example, an IP address and subnetwork mask in dotted decimal notation would appear as

Prefix length notation (often called network prefix format) allows for more efficient allocation of IP addresses than the old Class A, B, and C address scheme. The prefix length is the number of leftmost contiguous bits equal to 1 in the subnetwork mask. This format appears immediately following the dotted decimal IP address using a /N format.

For example, the same IP address and subnetwork mask mentioned above would appear as follows using /N format:

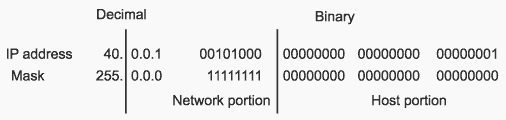

A network mask is used to separate the network information from the host information about an IP address. Figure below shows the network mask applied to network The mask in binary notation is a series of 1s followed by a series of contiguous 0s. The 1s represent the network number; the 0s represent the host number. The sample address splits the IP address into a network portion of 10 and a host portion of 0.0.1.

network mask applied to network

Classes A, B, and C have the following natural masks, which define the network and host portions of each class:

Class A natural mask 255.0.0.
Class B natural mask
Class C natural mask

The use of masks can divide networks into subnetworks by extending the network portion of the address into the host portion. Subnetting increases the number of subnetworks and reduces the number of hosts.

For example, a network of the form accommodates one physical segment with about 16 million hosts on it. Below figure shows how the mask is applied to network The mask divides the IP address into a network portion of 10, a subnet portion of 0, and a host portion of 0.1. The mask has borrowed a portion of the host space and has applied it to the network space. The network space of the class 10 has increased from a single network to 256 subnetworks, ranging from to This process decreases the number of hosts per subnet from 16,777,216 to 65,536.

the mask is applied to network

Classless Addressing with CIDR

CIDR is a system of addressing that improves the scaling factor of routing in the Internet. CIDR does not use an implicit mask based on the class of network. In CIDR, an IP network is represented by a prefix, which is an IP address and an indication of the leftmost contiguous significant bits within this address.

For example, without CIDR, the class C network address would be an illegal address. With CIDR, the address becomes valid with the notation: The /16 indicates that 16 bits of mask are being used (counting from the far left). This would be similar to an address with a mask of

A network is called a supernet when the prefix boundary contains fewer bits than the network's natural mask. For example, a class C network has a natural mask of The representation has a shorter mask than the natural mask (16 is less than 24), so it is a supernet. Network Mask is a 32bit value that identifies the network to which an IP address belongs.

The CIDR Value table is as shown below:

Subnet Mask CIDR value /16 /17 /18 /19 /20 /21 /22 /23

Important points to note:

1. A subnet mask is used to determine the break between network and host subsections of an IP addressing

2. VLSM allows for conservation of address space by allowing the subnet mask to allocate bits across the entire range of the IP address

3. An address where all the host bits are set to 1 is the broadcast

4. An address where all the host bits are set to 0 is the network

5. There are 2n-2 addresses in a CIDR block, where n is the number of host bits

IPv6 addressing: IP version 6 (IPv6) increases the size of the IP address from the 32 bits found in IPv4 to 128 bits. This increased size provides for a broader range of addressing hierarchies and a much larger number of addressable nodes.

IPv6 addresses consist of eight hexadecimal groups. Each hexadecimal group, separated by a colon (:), consists of a 16-bit hexadecimal value.

The following is an example of the IPv6 format: xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx

A group of xxxx represents the 16-bit hexadecimal value. Each individual x represents a 4-bit hexadecimal value.

The following is an example of a possible IPv6 address: 4FDE:0000:0000:0002:0022:F376:FF3B:AB3F

Comparison between IPv4 and IPv6 addressing

IPv4 IPv6
32-bit (4 byte) address supporting 4,294,967,296 address (although many were lost to special purposes, like and  128-bit (16 byte) address supporting 228 (about 3.4 x 1038) addresses
NAT can be used to extend address limitations  No NAT support (by design)
IP addresses assigned to hosts by DHCP or static configuration  IP addresses self-assigned to hosts with stateless address auto-configuration or DHCPv6

IPv4 and IPv6 addressing concepts:

IPv4 IPv6
Mulitcast address space at  Multicast address space at FF00::/8
Has broadcast addresses for all devices  No such concept in IPv6 (uses multicast groups)
Uses as unspecified address  Uses :: as unspecified address
Uses as loopback address  Uses ::1 as loopback address
Supports globally unique "public" addresses  Supports globally unique unicast addresses
Uses,, and as "private" addresses  Uses FD00::/8 as unique local addresses

Figure below compare the header of a IPv4 packet and an IPv6 packet

comparing the header of a IPv4 packet and an IPv6 packet (ipv4)

Fig: IPv4 Header

comparing the header of a IPv4 packet and an IPv6 packet (ipv6)

Fig: IPv6 header

IPv6 packets have their own frame Ethertype value, 0x86dd, making it easy for receivers that must handle both IPv4 and IPv6 to distinguish the frame content on the same interface. The IPv6 header is comprised of the following fields:

  • Version: A four-bit field for the IP version number (0x06).
  • Traffic Class: An 8-bit field that identifies the major class of the packet content (for example, voice or video packets). The default value is 0, meaning it is ordinary bulk data (such as FTP) and requires no special handling.
  • Flow Label: A 20-bit field used to label packets belonging to the same flow (those with the same values in several TCP/IP header parameters). The flow label is normally 0 (flows are detected in other ways).
  • Payload Length: A 16-bit field giving the length of the packet in bytes, excluding the IPv6 header.
  • Next Header: An 8-bit field giving the type of header immediately following the IPv6 header (this serves the same function as the Protocol field in IPv4).
  • Hop Limit: An 8-bit field set by the source host and decremented by 1 at each router. Packets are discarded if Hop Limit is decremented to zero (this replaces the IPv4 Time To Live field). Generally, implementers choose the default to use, but values such as 64 or 128 are common.

IPv6 Host Addressing: IPv4 hosts are fairly easy to configure: usually, the network interface has one IPv4 address. When coupled with the default router - if there is a way off the subnet- the host has everything it needs to decide where things go. But IPv6 does much more. In contrast to IPv4 hosts, IPv6 hosts (end devices) normally have multiple addresses on each interface. But these multiple addresses greatly simplify the operation of the IPv6 network layer (finding network neighbors, routers, and so on).

Unicast addresses

  • Link-local address on each interface (Unique Local Addresses, ULA, beginning with FE00::/7 can use to generate and register site local prefixes based on RFC 4193)
  • Additional unicast addresses for each interface, which can be multiple global addresses or unique local addresses
  • Loopback address (::1)

Multicast addresses

  • FF01::1 - The interface-local scope all-nodes multicast address
  • FF02::1 - The link-local scope all-nodes multicast address
  • The solicited-node address for each assigned unicast address
  • The multicast addresses of any groups the host has joined

All IPv6 router interfaces also listen for traffic on the following multicast addresses:

  • FF01::1 - The interface-local scope all-nodes multicast address
  • FF01::2 - The interface-local scope all-routers multicast address
  • FF02::1 - The link-local scope all-nodes multicast address
  • FF02::2 - The link-local scope all-routers multicast address
  • FF05::2 - The site-local scope all-routers multicast address
  • The solicited-node address for each assigned unicast address
  • The multicast addresses of any groups the router has joined

What is Reverse Path Forwarding and why it is required: To protect against IP spoofing, and some types of denial-of-service (DoS) and distributed denial-of-service (DDoS) attacks, Unicast Reverse-path Forwarding (RPF) verifies that packets are arriving from a legitimate path. It does this by checking the source address of each packet that arrives on an untrusted ingress interface and, comparing it to the forwarding-table entry for its source address.

Unicast RPF is supported for the IPv4 and IPv6 protocol families. There are two modes of unicast RPF, strict mode, and loose mode.

The default is strict mode, which means the switch forwards a packet only if the receiving interface is the best return path to the packet's unicast source address. Strict mode is useful in identifying untrusted interfaces and sending packets via the best route.

The other mode is loose mode, which means the system checks to see if the packet has a source address with a corresponding prefix in the routing table, but it does not check whether the receiving interface is the best return path to the packet's unicast source address.
